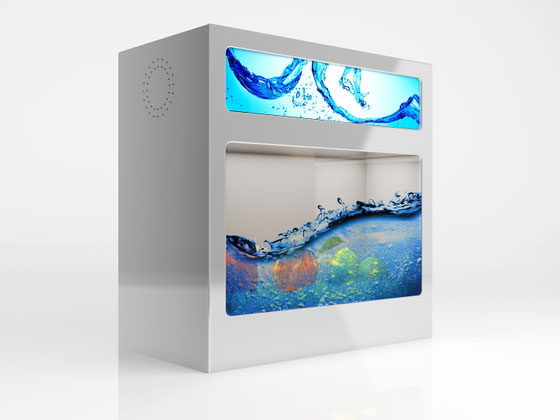

21DCDBM

DICO Transparent LCD Product Series have a wide range of use in all industry areas as an efficient tool for delivering information and communication. These panels can be applied to show windows, outdoor billboards and in showcase events.

------------------------------------------------------------

*Top : 21.5” Stretched TFT LCD Display

*Bottom : 21.5” Stretched TFT LCD Display

*FHD (Top : 1,920 X 360, Bottom : 1,920 X 1,080)

*Industrial Grade Metal Cabinet

*Auto Media USB Play

*Input Signal : USD 1 / USD 2

SPECIFICATION

21DCDBM		Top	Bottom
Display	Screen Size	21.5", FHD	21.5"(3/4), FHD
	Resolution	1,920 X 360(3/4)	1,920 X 1,080
	Pixel Pitch	248.25um(H) X 248.25um(V)
	Contrast Ratio	1,400 : 1(typ.)
	Viewing Angle(H/V)	178° / 178°
	Response Time	8 ms
Interface	USB In	2	2
	AC Power In	1
Built in Speaker(Option)		3W x 2
Dimension	Outline Dimension	TBD
Warranty	Part / Labor	1 Year / 1 Year
Cabinet	Color	White
	Metal	Electronic galvanized iron
Built In USB Media Player	CPU & OS	32bit RISC CPU Embedded 8-bit I/O
		RTOS
		System Memory : DDR3 1Gb
	A/ Codec	Video : 1080P Video Decoding for H.264, VP8, RV, WMV, AVS, H.263, MPEG4
	Memory	Audio : Multi-format Audio Playback. Support MP3, WMA, APE, FLAC, RA, AAC, OGG and WAV
OSD	Language	English
Power	Consumption : <On	130W
		100V ~ 240V
Circumstance	Operating Temperature	0°C ~ 70°C
	Storage Temperature	0°C ~ 80°C

Designs and specifications are subject to change without notice.
